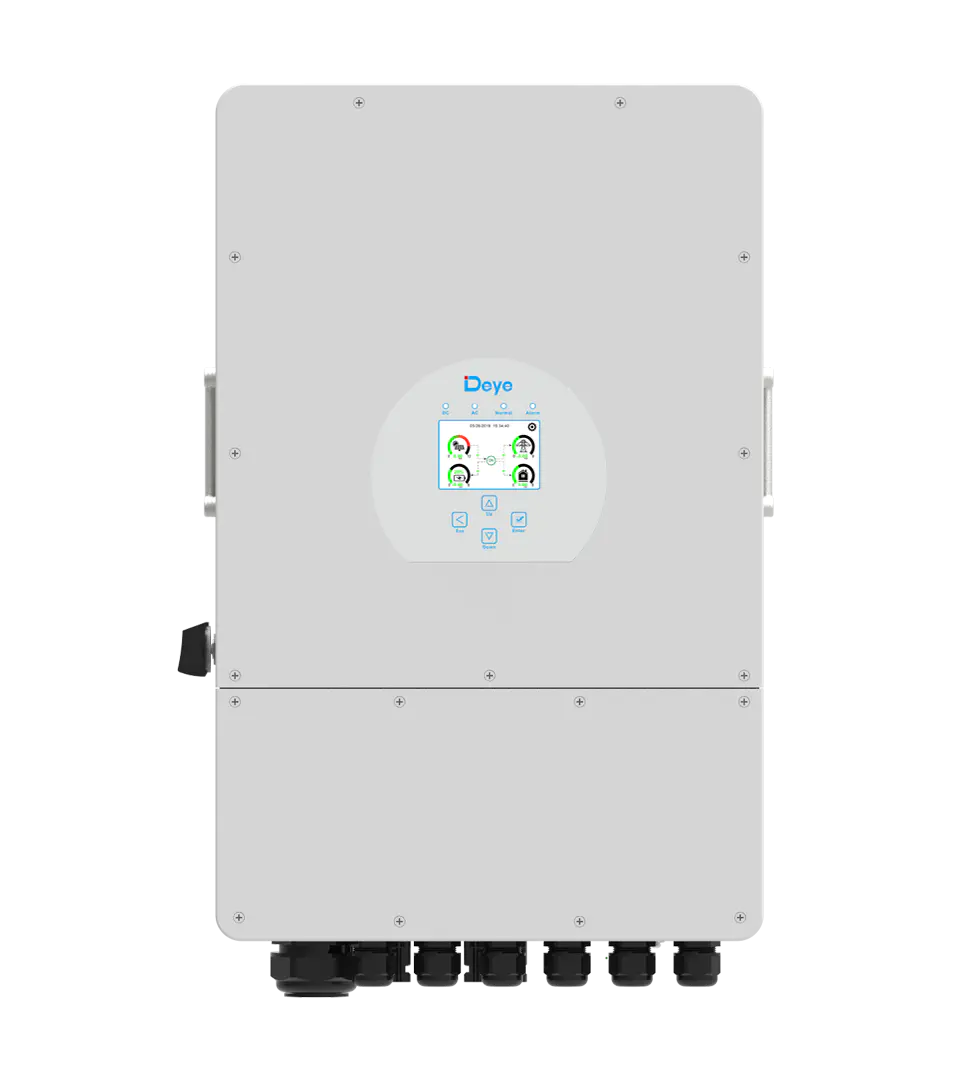

SUN-12K-SG04LP3 | Deye |12KW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery
- If you are interested in buying Deye 12Kw 3 Phase Hybrid Inverter, you have come to the right place.
- Deye’s 3phase hybrid inverter with a battery voltage range of 40~60V is expected to bring an end to the problem that the DC high voltage causes fires.
- The Deye 12Kw 3 Phase Hybrid Inverter is a hybrid inverter for both wind turbines and solar panel.
- This hybrid inverter is highly reliable and cost-effective.
- It automatically switches from AC mode to DC mode within five milliseconds.
Deye 12Kw Hybrid inverter adopts the latest “battery management system” (BMS), which is a critical part of hybrid inverter system to ensure the safety and stability of the whole system.
- 48V low voltage battery, transformer isolation design.
- 6 time periods for battery charging/discharging.
- Max. charging/discharging current of 240A.
- Frequency droop control, Max.16pcs parallel.
- DC couple and AC couple to retrofit the existing solar system.
- Support storing energy from a diesel generator.
- Supports three-phase unbalanced output.
- Unique Smart Load application and Grid peak-shaving function.
100% Unbalanced Output.
- The series inverter supports unbalanced output.
- Each phase Max. output power is up to 50%Pn. E.g. for the 12KW hybrid inverter, the A-phase Max. output power can reach 6KW.
Droop Control.
- Adopts frequency droop control technology to ensure system reliability and stability.
- With the droop characteristics of traditional diesel generators, and it can adjust the output power by changing the frequency and voltage.
Support Max. Number of Parallel of 16pcs.
Higher yields.
- Improve self-consumption ratio up to 80%, reducing your electricity bill.
- DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
- Two MPPT designs, Max. efficiency of 97.6%.
User-friendly.
- LCD Touch screen and buttons, easy operation.
- Compatible with a lithium-ion battery and lead-acid battery.
- Web browser and mobile App monitoring supported.
Reliable.
- PV lighting protection, Anti-islanding protection, Leakage current protection etc.
- Support store energy from DG when needed, ensure the system working within 7*24H.
- IP65 protection degree, adapt to indoor and outdoor using.
- Automatically switch from on-grid to off-grid mode within 5ms.
- Zero exporting function, fast reaction within 200ms in zero export mode.
Smart.
- Programmable charging and discharging schedule.
- Both wind turbines and solar panels can be connected as DC input power.
- Max. 16 units can be paralleled for higher system power.
- Retrofitting of existing solar system to energy storage system.
