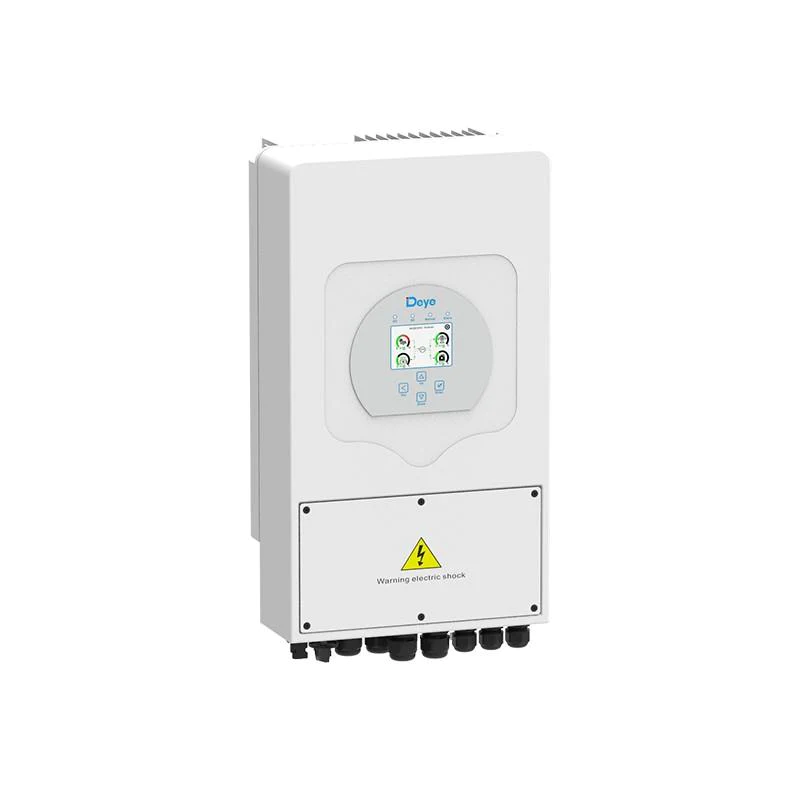

Deye HYBRID INVERTER
- Weight: 34.5 kg
- Rated Power: 16,000 W
- Min PPT Voltage: 150 V
- Max PPT Voltage: 450 VDC
- Startup Voltage: 150 VDC
- Shutdown Voltage: 150 V
- Max Input Voltage: 450 V
- Max DC Power: 18,000 W
- Max AC Power: 16,000 W
- Surge AC Power: 24,000 W
- Max DC Current: 66 A
- Max DC Inputs: 6
- Euro Efficiency: 97 %
- MPPT Quantity 3
- Warranty: 5 years
Product Features
- The largest single-phase hybrid Inverter on the market.
- A total of 15 x inverters can be connected in a three-phase configuration (five units per phase) – giving a maximum power output of 240kW.
- 3 x inverters can be connected in a single-phase configuration giving a total power of 48kW.
- Contains 3 x MPPTs to allow for flexible PV array designs and improved efficiency.
- Programmable multiple operation modes: on-grid/off-grid & UPS.
- IP65 protection rating – suitable for most outdoor installations.
- Wi-Fi dongle as standard – enabling remote monitoring via the deye cloud
- Compatible with leading lithium battery brands such as Hubble Lithium, Pylontech LV and Freedomwon.
